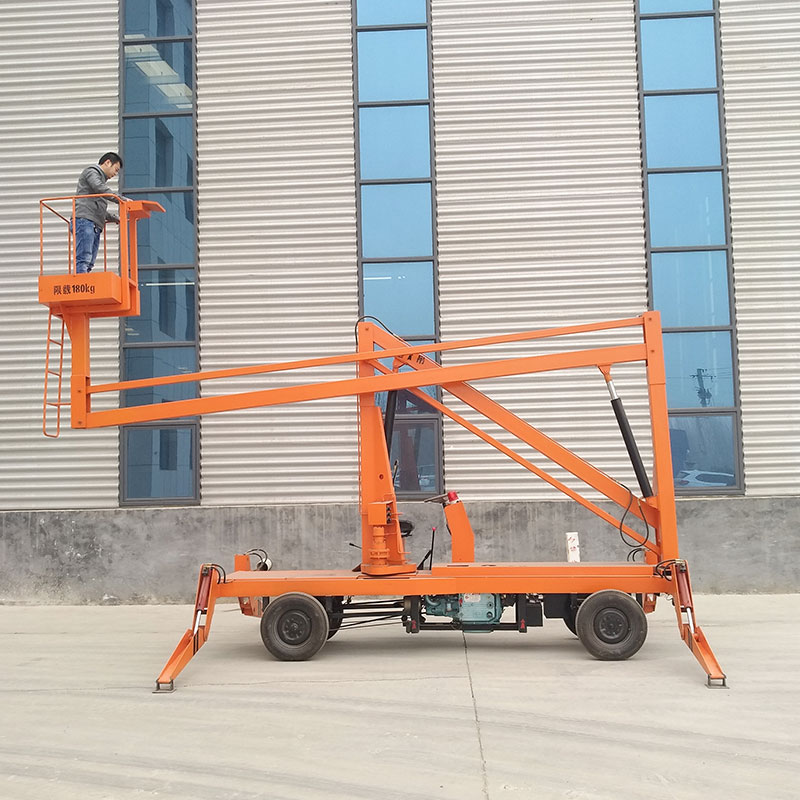

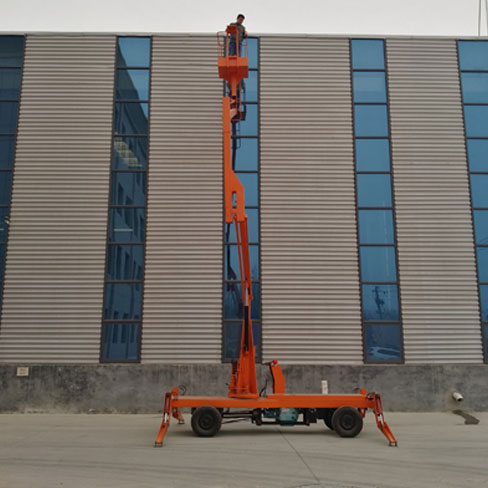

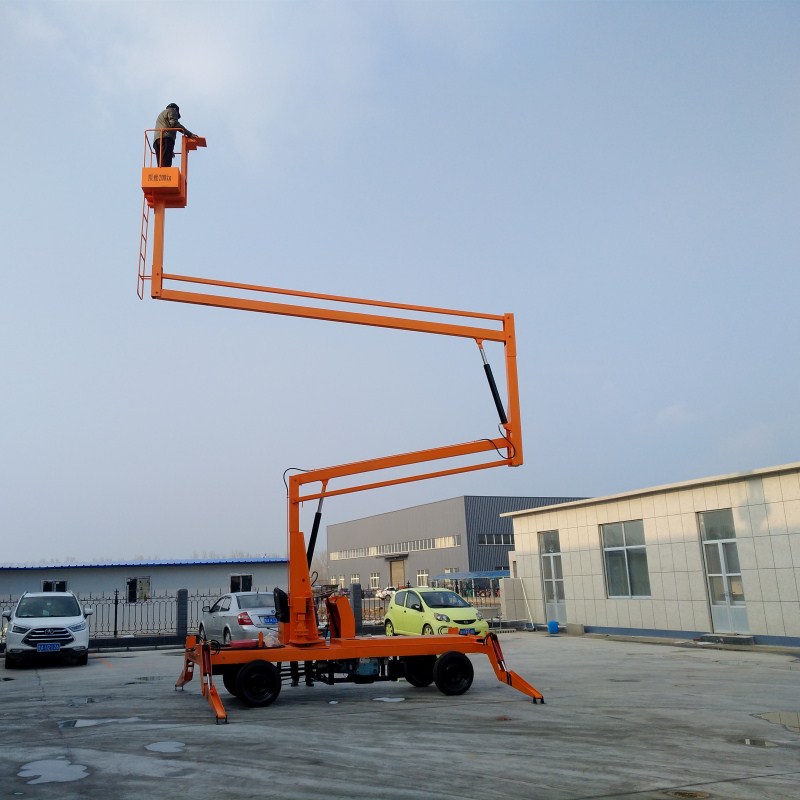

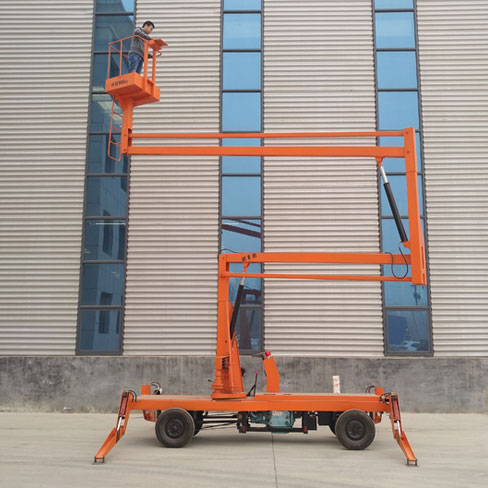

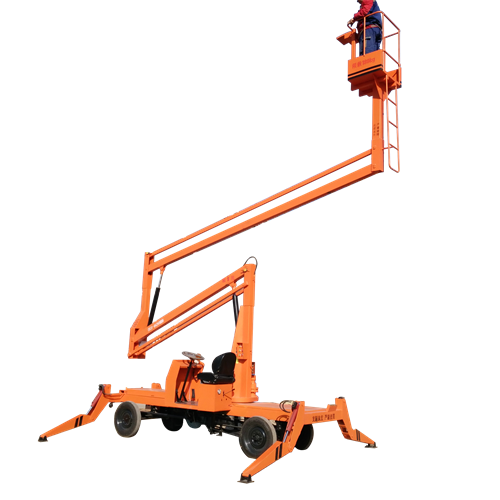

Crank Arm Aerial Work Platform
Main spec.
● Max.Working Height: 16m
Load Capacity: 200kg
● Platform Size: 550*700mm
Important features
● Automated drive and hydraulic automatic leg.
●  Rotated 360°.
● It can stride across the barriers to work, without external power supply.

Application:

The crank arm lift can overhang operation, can overcome some obstacles or in a point lifting for more point work. this kind of lift can rotate 360 degrees, load capacity big, available to two people for working at the same time and carry some tools ;mobile flexible, transfer work place convenient, appearance beautiful.


Detailed features:

1.Platform

Its platform can lift up ,extend horizontally, or turn around 360 degrees to stride across certain obstacles for work . so it can realize multipoint work in wide scope.

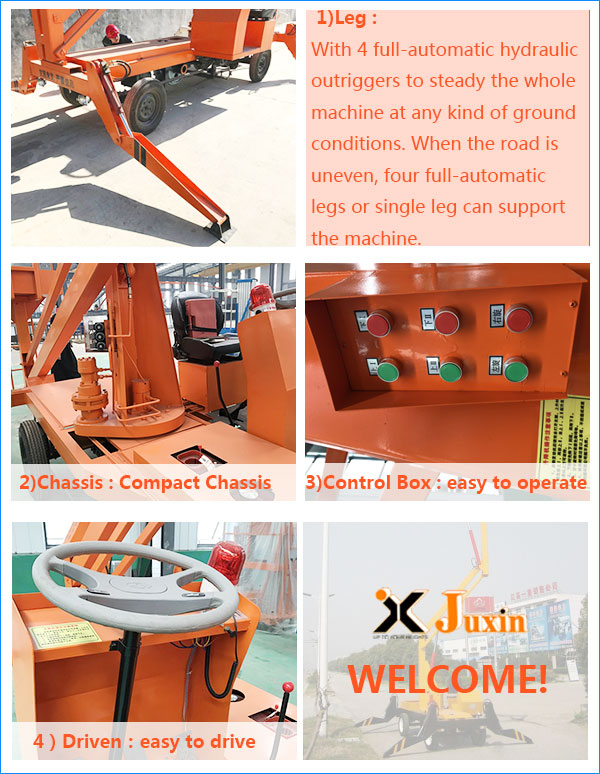

2.Legs

With 4 full-automatic hydraulic outriggers to steady the whole machine at any kind of ground conditions. When the road is uneven, four full-automatic legs or single leg can support the machine.



3.Drive

 It can be diesel or storage battery according to customer's requirements.



4.Material

 Adopt structural steel with high quality, handicraft for single-side welding and double-side molding.



5.Hydraulic cylinder

Original import or domestic joint venture hydraulic cylinder, with high quality,  improving the reliability and prolonging  the work time.



6.Aloft work platform

Equipped with balanced valve, automatic pressure maintaining ,etc.



7. Advantages

The trailer boom lift is safe, reliable and durable. This type of cargo-lifts with characteristics of flexible moving, smoothly lifting, big convenient operation and so on.


Attention about trailer boom lift:

1. When the platform works, the work bench should be horizontal
2. When work outdoors, workers should wear safety rope when the platform is higher than six meters.
3. In the process of lifting platform, anyone is prohibited from climbing.
4. Forbid working until support legs are right. After littered, platform should not be moved.



We have strict quality control in every process and have passed CE ISO certification.
